nginx开启HTTP2

==================开启HTTP2的前提是HTTPS======================

注:系统环境为CentOS7

一、查看当前版本

本站当前nginx版本为1.10.2,yum安装,猜测应该不支持HTTP2


nginx -V
nginx version: nginx/1.10.2
built by gcc 4.8.5 20150623 (Red Hat 4.8.5-4) (GCC)
built with OpenSSL 1.0.1e-fips 11 Feb 2013
TLS SNI support enabled
configure arguments: --prefix=/usr/share/nginx \
--sbin-path=/usr/sbin/nginx \
--modules-path=/usr/lib64/nginx/modules \
--conf-path=/etc/nginx/nginx.conf \
--error-log-path=/var/log/nginx/error.log \
--http-log-path=/var/log/nginx/access.log \
--http-client-body-temp-path=/var/lib/nginx/tmp/client_body \
--http-proxy-temp-path=/var/lib/nginx/tmp/proxy \
--http-fastcgi-temp-path=/var/lib/nginx/tmp/fastcgi \
--http-uwsgi-temp-path=/var/lib/nginx/tmp/uwsgi \
--http-scgi-temp-path=/var/lib/nginx/tmp/scgi \
--pid-path=/run/nginx.pid \
--lock-path=/run/lock/subsys/nginx \
--user=nginx --group=nginx \
--with-file-aio \
--with-ipv6 \
--with-http_ssl_module \
--with-http_v2_module \
--with-http_realip_module \
--with-http_addition_module \
--with-http_xslt_module=dynamic \
--with-http_image_filter_module=dynamic \
--with-http_geoip_module=dynamic \
--with-http_sub_module \
--with-http_dav_module \
--with-http_flv_module \
--with-http_mp4_module \
--with-http_gunzip_module \
--with-http_gzip_static_module \
--with-http_random_index_module \
--with-http_secure_link_module \
--with-http_degradation_module \
--with-http_slice_module \
--with-http_stub_status_module \
--with-http_perl_module=dynamic \
--with-mail=dynamic \
--with-mail_ssl_module \
--with-pcre --with-pcre-jit \
--with-stream=dynamic \
--with-stream_ssl_module \
--with-google_perftools_module \
--with-debug \
--with-cc-opt='-O2 -g -pipe -Wall -Wp,-D_FORTIFY_SOURCE=2 -fexceptions -fstack-protector-strong --param=ssp-buffer-size=4 -grecord-gcc-switches -specs=/usr/lib/rpm/redhat/redhat-hardened-cc1 -m64 -mtune=generic' \
--with-ld-opt='-Wl,-z,relro -specs=/usr/lib/rpm/redhat/redhat-hardened-ld -Wl,-E'

分析一下,可以看出以下信息:

1、版本为1.10.2,修复了nginx的HTTP2的Bug

2、虽然启用了HTTP2模块,但是却以OpenSSL 1.0.1版本编译,而1.0.2+才支持ALPN,Chrome从51版起已经移除了对NPN的支持,所以只能自编译或更换添加其他源,这里选择了自编译

经测试,CentOS 7最新的openssl版本为1.0.2k,不再需要自编译,直接通过yum安装即可。

二、编译

下面是自己的编译参数


./configure --prefix=/usr/share/nginx \
--sbin-path=/usr/sbin/nginx \
--modules-path=/usr/lib64/nginx/modules \
--conf-path=/etc/nginx/nginx.conf \
--error-log-path=/var/log/nginx/error.log \
--http-log-path=/var/log/nginx/access.log \
--http-client-body-temp-path=/var/lib/nginx/tmp/client_body \
--http-proxy-temp-path=/var/lib/nginx/tmp/proxy \
--http-fastcgi-temp-path=/var/lib/nginx/tmp/fastcgi \
--http-uwsgi-temp-path=/var/lib/nginx/tmp/uwsgi \
--http-scgi-temp-path=/var/lib/nginx/tmp/scgi \
--pid-path=/run/nginx.pid \
--lock-path=/run/lock/subsys/nginx \
--user=www --group=www \
--with-openssl=/usr/src-packages/openssl-1.0.2k \
--with-http_ssl_module \
--with-http_v2_module \
--with-http_realip_module \
--with-http_addition_module \
--with-http_sub_module \
--with-http_dav_module \
--with-http_flv_module \
--with-http_mp4_module \
--with-http_gunzip_module \
--with-http_gzip_static_module \
--with-http_random_index_module \
--with-http_secure_link_module \
--with-http_degradation_module \
--with-http_slice_module \
--with-http_stub_status_module \
--with-pcre \
--with-pcre-jit \
--with-stream \
--with-stream_ssl_module \
--with-cc-opt='-O2 -g -pipe -Werror -Wp,-D_FORTIFY_SOURCE=2 -fexceptions -fstack-protector-strong --param=ssp-buffer-size=4 -grecord-gcc-switches -m64 -mtune=generic' \
--with-ld-opt='-Wl,-z,relro -Wl,-E'

三、修改nginx配置文件并重启Nginx

listen       443 ssl http2 fastopen=3 reuseport;

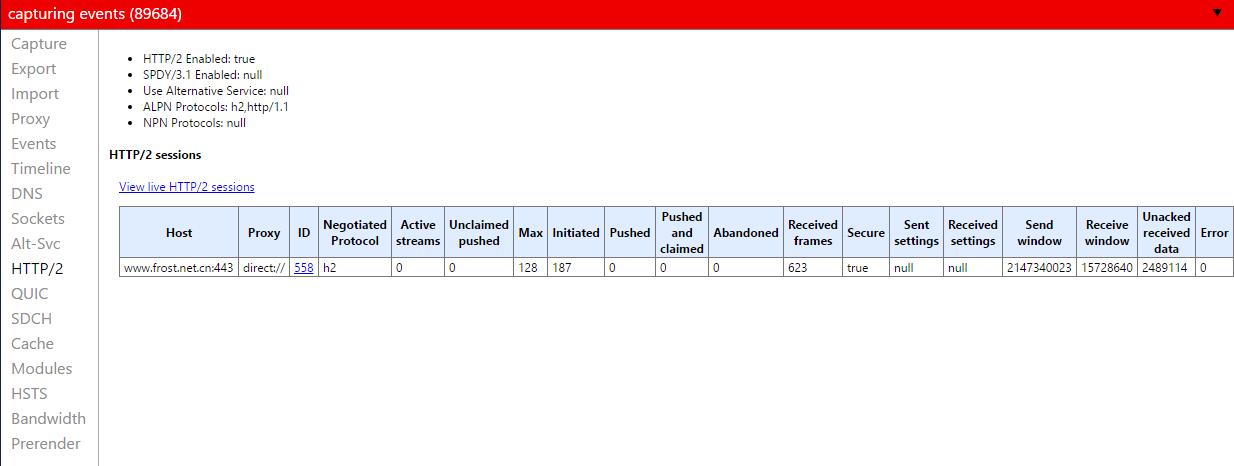

四、验证

浏览自己的网站,然后在地址栏输入chrome://net-internals/#http2

HTTP/2 sessions出现自己的网站代表开启了HTTP2
